Product Range


Single Row Bearings

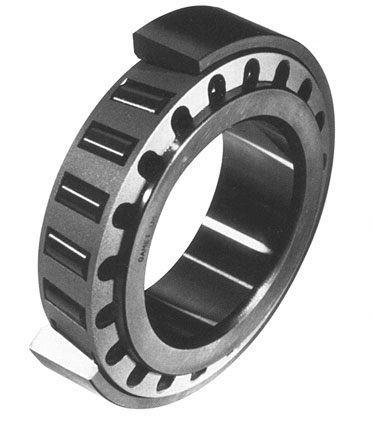

Plain Cup


The basic single row bearing can be used in light to medium loaded applications, and provides a simple, cost-effective arrangement.

Gamet Bearings






























BENEFITS

• Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies

• Cone Bore Run-out tolerances ranging from 0.5 microns to 1.5 microns

• Comprehensive range of sizes from 25mm bore upwards

• High quality bearing materials

• Available to meet your particular requirements

• Competitive delivery on most sizes


Click link below for list of standard sizes

Gamet Bearings

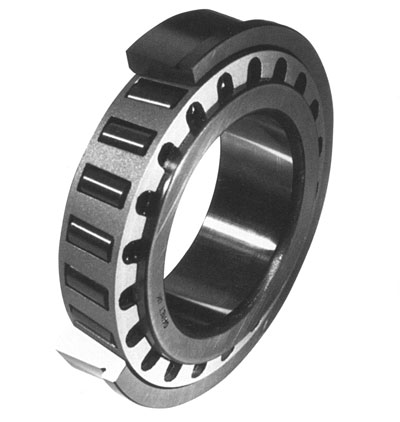

Flanged Cup (C Type)


The flanged cup version enables through boring of the housing for simplicity and accuracy.

Gamet Bearings






























BENEFITS

• Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies

• Cone Bore Run-out tolerances ranging from 0.5 microns to 1.5 microns

• Comprehensive range of sizes from 25mm bore upwards

• High quality bearing materials


Click link below for list of standard sizes

Gamet Bearings

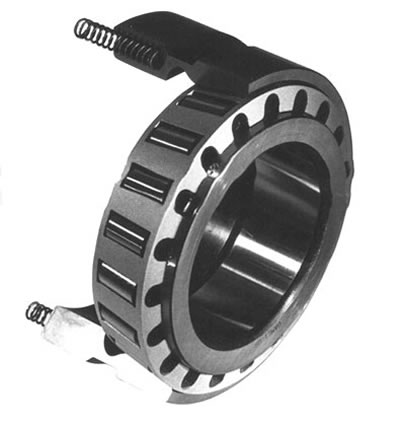

Constant Preload Bearing (P Type)


This single row bearing has an extended outer ring, housing a number of springs. It is mounted in conjunction with either a single or double row bearing.

As the outer race is free to slide in the housing, the spring force ensures that a constant bearing system preload is maintained despite thermal expansion due to varying temperature conditions.


Gamet Bearings




























BENEFITS

• Specialist design and manufacturing service available to meet your particular requirements

• Competitive delivery on most sizes


Click link below for list of standard sizes

Gamet Bearings





Double Row Bearings



Double Row G Type


Double row bearings offer nearly twice the capacity of the equivalent single row bearing, and are therefore used in more heavily loaded applications.


Gamet Bearings



























BENEFITS

The plain outer race enables this bearing to be used in a ‘floating’ position to permit thermal expansion. As such it can replace a P type bearing when additional load capacity is required. G type bearings can be pre-adjusted to give GE double row bearings. This is achieved by fitting a spacer between the inner races to give the required assembly end play or preload. The choice of setting is based upon a number of parameters such as speed, lubrication and applied loads. Spacer width is adjusted individually prior to despatch. For further advise contact Gamet Bearings.

Click link below for list of standard sizes

Gamet Bearings

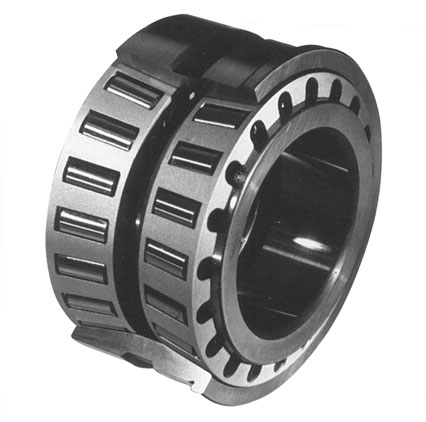

Double Row, Flanged Cup (H Type)


Double row bearings offer nearly twice the capacity of the equivalent single row bearing, and are therefore used in more heavily loaded applications.


Gamet Bearings



























BENEFITS

This double row bearing has a flanged outer ring which locates the shaft axially. This can also simplify housing machining operations and overall design. H type bearings can be pre-adjusted to give HE double row bearings. This is achieved by fitting a spacer between the inner races to give the required assembly end play or preload. The choice of setting is based upon a number of parameters such as speed, lubrication and applied loads. Spacer width is adjusted individually prior to despatch. For further advise contact Gamet Bearings.

Click link below for list of standard sizes
