Modifications

Modifications examples

1. CIRCLIP GROOVE AND CIRCLIP (NR) ADDED

Picture of circlip groove and circlip

2. ‘V’ GROOVES ADDED

Picture of V Grooves added                            Picture of CAD drawing of spherical bores added

3. ‘U’ GROOVES ADDED

Picture of U Grooves added                                 Picture of CAD drawing of  U Grooves added

4. OIL GROOVES WITH OIL HOLES (W33)

 Picture of  oil grooves with oil holes
Oil holes and oil grooves can be added to standard bearings. Care must be taken where the oil hole enters the bearing.

5. SPHERICAL OUTSIDE DIAMETERS (172 TYPE) ADDED

Picture of  sphericaloutside diameters
We can modify standard bearings to standard spherical outside diameters for self alignment

6. FORM GROOVES ADDED

Picture of form Grooves added                Picture of CAD drawing of form added
A variety of form grooves can be put into the outside diameter of standard bearings

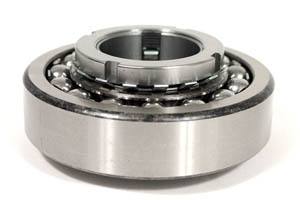

7. TAPER BORES ADDED (SHOWN COMPLETE WITH TAPER SLEEVE)

Picture of Taper Bores added

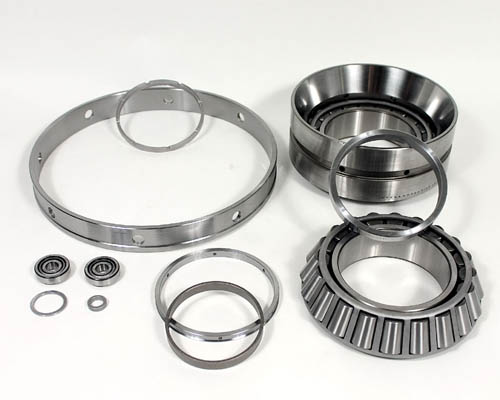

8. EXAMPLES OF SPACERS TO SUIT TAPER ROLLERS

Picture of spacer examples to suit taper rollers
We can supply spacers to pair taper roller bearings face to face (DF), back to back (DB) or tandem (DT).   We can adjust bench end play or preload on multi-row taper roller bearings.
We can supply new or replacement spacers of all types

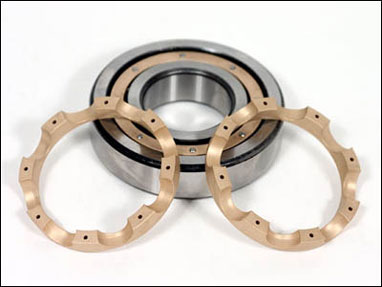

9. REPLACEMENT CAGES

Picture of replacement cages

Picture of replacement cages

We can replace cages in existing bearings with new ones made from: Bronze, Aluminium bronze, Steel, Phenolic resin, Nylon 66, “PEEK” or Aluminium. Other materials can be considered upon request.

11. SPHERICAL BORES ADDED

Picture showing spherical bores added                Picture of CAD drawing of spherical bores added

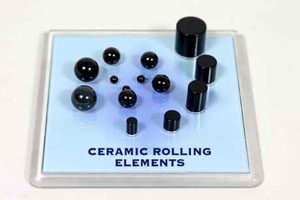

12. CERAMIC BALLS AND ROLLERS ADDED

Picture of ceramic balls and roller


We can replace the existing balls or rollers in your bearings for those made of silicone nitride. You can benefit from the properties of this material without the expense of having to replace the whole bearing.
